Categories:ENERGY STORAGE - ZONERGY HOME SAFE

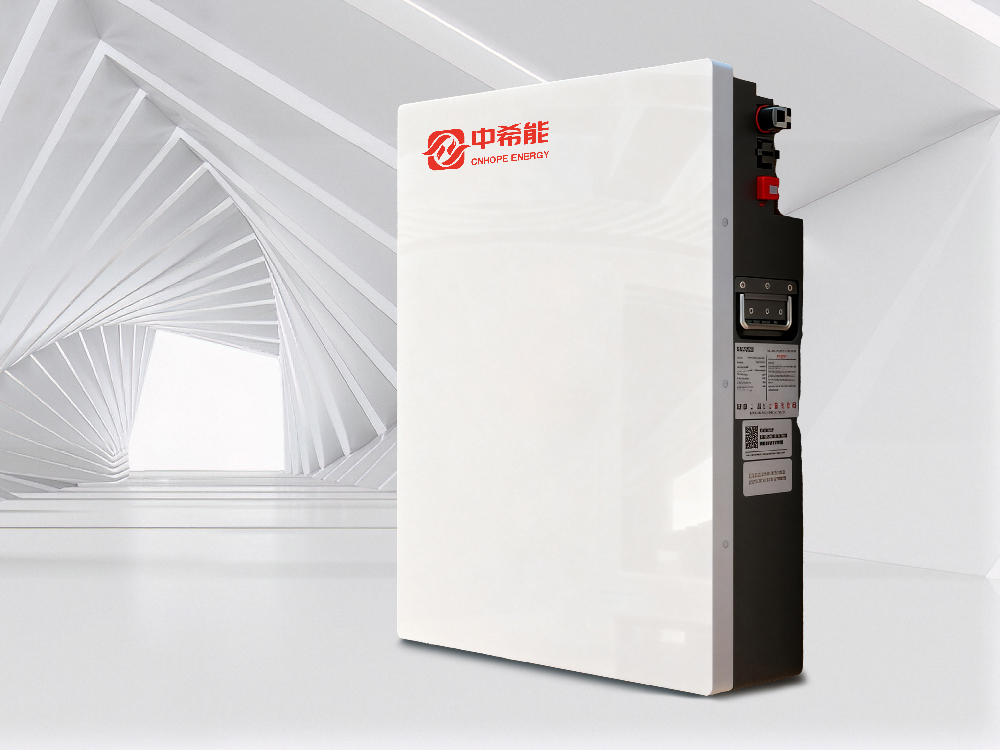

Introduction:This low-voltage model is designed for residential energy storage. Up to 50 units can be connected in parallel, covering capacities from 5.12kWh to 256kWh. With IP66 high protection grade, it is suitable for indoor and outdoor installation. A built-in aerosol fire extinguisher provides active fire suppression to fully secure the battery.
Advantages:
Scalable on demand: up to 50 units in parallel, covering 5.12kWh-256kWh
IP66 protection rating: withstands thunderstorms, rain and snow-melt and other harsh weather, with strong environmental adaptability
Ultimate safety: built-in aerosol fire extinguisher puts out fire automatically in 5s
Low-temperature self-heating: wide operating temperature range from -20°C to 55°C (optional)
Easy installation: supports wall-mounted and floor-standing installation, with no site restrictions
High-efficiency balancing: supports mixing modules at different SOC levels to protect battery life
| 型号 | ZN5.1 | 电池类型 | 磷酸铁锂 | 工作电压/容量 | 51.2V/100Ah |
| 电池电量 | 5.12kWh | 电压范围 | 44.8V-57.6V | 建议充放电倍率 | 0.5C |
| 建议充放电电流 | 50A | 最大充/放电电流 | 充电:75A/放电:100A | 峰值放电电流 | 120A@10min |
| 循环次数* | ≥8000次/10年 | 放电深度 | 95% | 充电温度 | 0℃~55℃/-20℃~55℃(选配加热) |
| 放电温度 | -20℃~55℃ | IP等级 | IP66 | 产品尺寸(宽/深/高,毫米) | 450*165*660 |
| 净重 | 54.4kg | 最大并联数量 | 50 | 消防系统 | 内置气溶胶灭火器 |
| Wifi功能 | 内置WiFi模块,APP OTA功能 | 通讯方式 | CAN/RS485 | 认证 | UN38.3/IEC62619/CE-EMC |
| 适配逆变器 | SMA/Schneider/Victronenergy/Ingeteam/Solis/GoodWe/Growatt/Solplanet/Luxpower/DEYE/Apsystem etc. | ||||
| *测试条件:0.2C充放电,25℃,95%DOD | |||||
