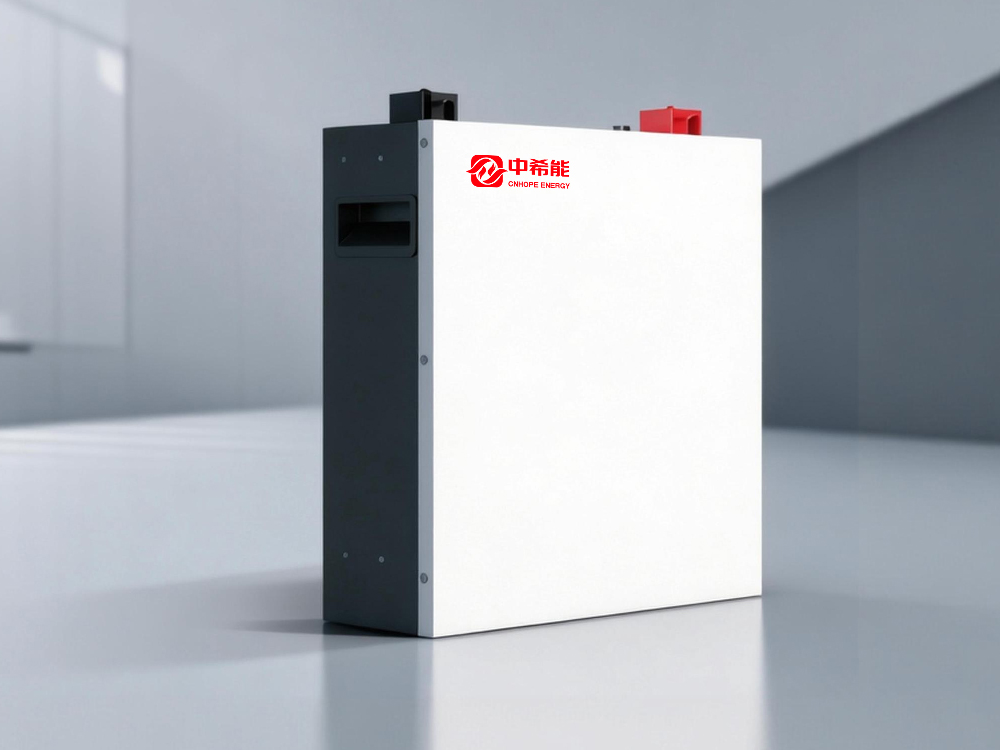

ZN5.0C Pro

ZN5.0C Pro

Categories:ENERGY STORAGE - ZONERGY HOME SAFE

Introduction:With cost-effective design, this battery is tailored for residential and small commercial use. Up to 50 units can be paralleled, with energy ranging from 5.12kWh to 256kWh to supply robust household power. High cycle life ensures safe and independent power consumption.

Advantages

Scalable on demand: up to 50 units in parallel, covering 5.12kWh-256kWh
1C discharge: handles more impact loads and copes easily with power outages
Low-temperature self-heating: wide operating temperature range from -20°C to 55°C (optional)
Ultimate safety: built-in aerosol fire extinguisher puts out fire automatically in 5s (optional)
Easy installation: supports wall-mounted and floor-standing installation for high space utilization
Smart management: real-time battery health monitoring, remote fault diagnosis and one-click smart upgrade

ZN5.0C Pro Technical Parameters
ModelZN5.1C电池类型LiFePO₄额定电量5.12kWh
额定容量100Ah额定电压51.2V工作电压44.8~57.6V
建议充放电倍率0.5C最大放电倍率1C建议充/放电电流50A
最大充/放电电流充电75A 放电100A峰值放电电流120A@10min放电深度(DOD)95%
净重46kg尺寸[宽/深/高,毫米]488/515/150充电温度范围0~55℃/-20~55℃(带加热功能)
放电温度范围-20~55℃WiFi模块内置WIFI模块;APP、OTA功能通讯方式CAN/RS485
循环寿命≥6000 Cycles防护等级IP20主动防火系统可选气溶胶灭火器
容量扩展最多并联50个模组优势可用于离网和并网模式,紧凑型设计认证UN38.3/CE-EMC/IEC62619/IEC60730/CE-RED
适配逆变器SMA/Schneider/Victron energy/Ingeteam/Solis/GoodWe/Growatt/Solplanet/Luxpower/DEYE/Apsystem etc.
*测试条件:0.2C充放电,25℃,95%DOD

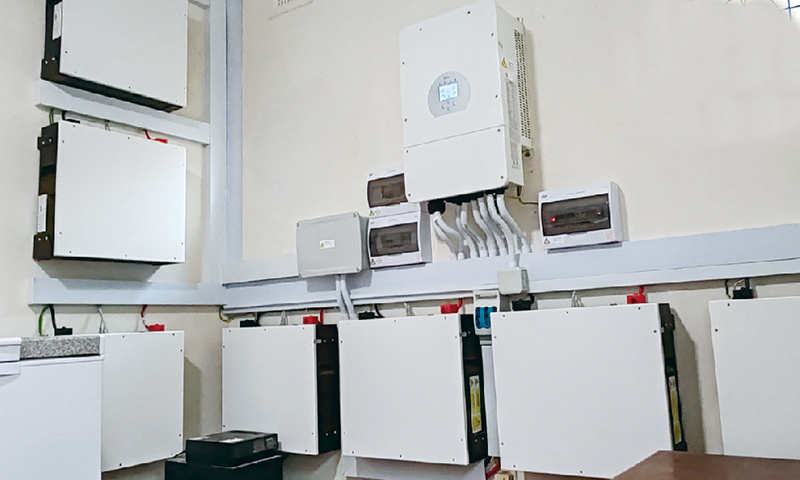

  • Customer Project Cases

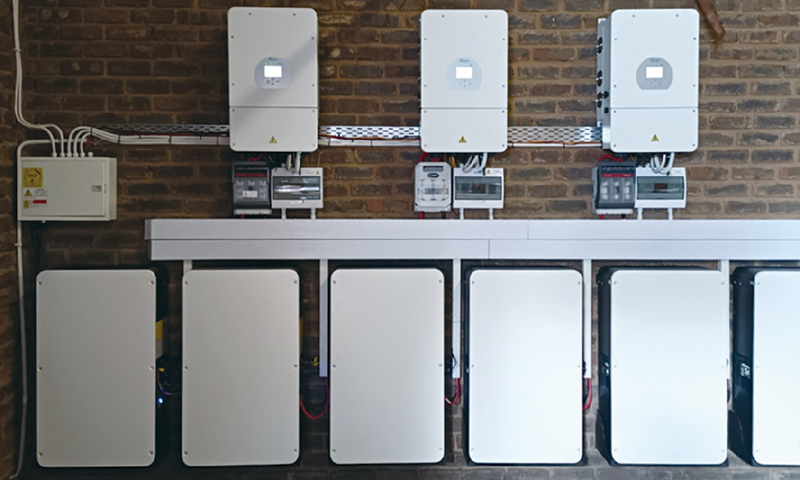

  • Customer Project Cases

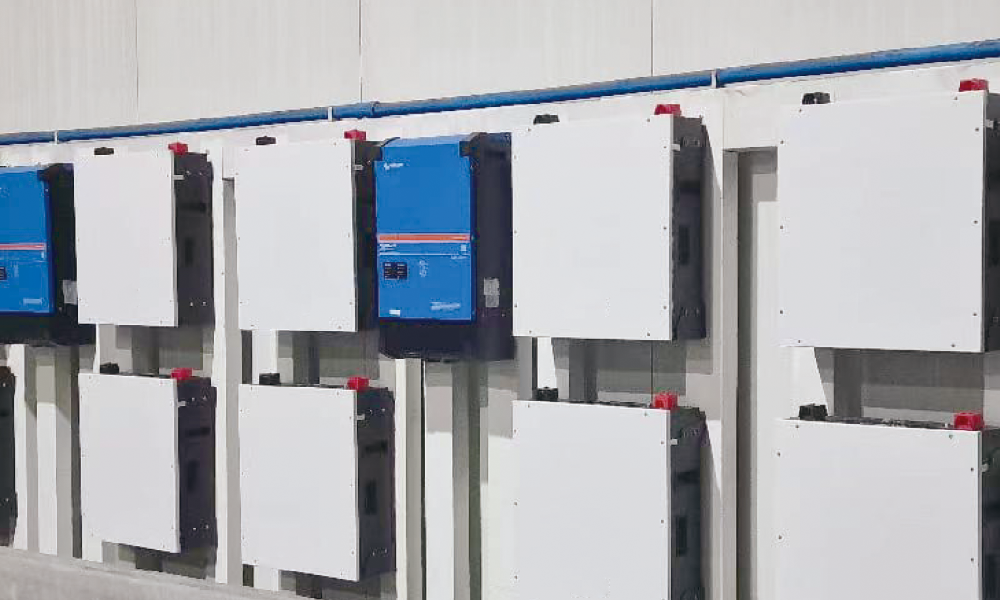

  • Customer Project Cases
